3.2 Installing the Appropriate RAM for a Given Scenario
COMPTIA A+ CORE 1 - DOMAIN 3
Cyber Wizard
This article provides an overview of RAM types, their features, and installation considerations based on different scenarios, as required for the CompTIA A+ exam.
CompTIA A+ Exam Domain: Domain 3.2 - Given a scenario, install the appropriate RAM.
Understanding RAM Types
RAM (Random Access Memory) is essential for system performance, affecting multitasking, processing speed, and overall responsiveness.
Virtual RAM
Uses part of the storage drive (HDD/SSD) as additional memory.
Also known as page file or swap space.
Slower than physical RAM but helps prevent system crashes when RAM is exhausted.
Commonly adjusted in Windows via Virtual Memory settings.
SODIMM (Small Outline Dual Inline Memory Module)
Compact RAM used in laptops and small form factor PCs.
Physically smaller than standard DIMMs.
Available in DDR3, DDR4, and DDR5 variations.
DDR3 (Double Data Rate 3)
Speeds range from 800 MHz to 2133 MHz.
Operates at 1.5V (or 1.35V for low-power DDR3L).
Found in older desktops and laptops.
DDR4 (Double Data Rate 4)
Speeds range from 1600 MHz to 3200 MHz+.
Lower power consumption at 1.2V.
Improved bandwidth and performance over DDR3.
Common in modern desktops and laptops.
DDR5 (Double Data Rate 5)
Higher bandwidth and efficiency than DDR4.
Speeds starting from 4800 MHz and above.
Operates at 1.1V for reduced power consumption.
Found in high-performance gaming PCs and workstations.
ECC (Error Correction Code) RAM
Detects and corrects memory errors.
Used in servers and mission-critical systems.
More expensive and slightly slower due to error-checking overhead.
Not compatible with standard consumer motherboards.
Memory Channel Configurations
RAM modules can be installed in different configurations to maximize system performance.
Single-Channel Memory
Uses one RAM module at a time.
Lower bandwidth and performance.
Common in budget PCs and laptops.
Dual-Channel Memory
Uses two matching RAM modules for increased bandwidth.
Modules must be installed in matching color-coded motherboard slots.
Common in most modern desktops and laptops.
Triple-Channel Memory
Uses three RAM modules to increase memory bandwidth.
Found in some older Intel X58 chipset motherboards.
Requires matching RAM sticks for optimal performance.
Quad-Channel Memory
Uses four RAM modules for maximum bandwidth.
Primarily found in high-end workstations and servers.
Requires a compatible motherboard with quad-channel support.
Steps for Installing RAM
Check Compatibility
Verify motherboard support for RAM type, speed, and capacity.
Use manufacturer’s QVL (Qualified Vendor List) for tested RAM modules.
Power Off and Unplug the System
Prevents static discharge and hardware damage.
Locate the RAM Slots
Found near the CPU socket on the motherboard.
Check color-coded slots for dual or quad-channel configurations.
Align the RAM Stick Correctly
Match the notch on the RAM stick with the slot.
Insert at a 45-degree angle (for laptops) or straight down (for desktops).
Apply Even Pressure Until the Clips Lock
Ensure the RAM clicks securely into place.
Power On and Verify Detection
Check system BIOS or operating system to confirm correct RAM installation.
Run MemTest86 to detect any memory errors.

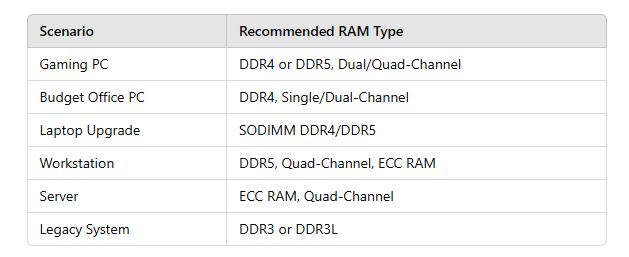

Choosing the Right RAM for a Scenario
Final Thoughts
Selecting the right RAM is critical for system performance and stability. The CompTIA A+ exam evaluates knowledge of RAM types, configurations, and installation procedures. Understanding memory compatibility and best practices ensures efficient troubleshooting and system upgrades.
