3.4 Installing and Configuring Motherboards, CPUs, and Add-On Cards
COMPTIA A+ CORE 1 - DOMAIN 3
Cyber Wizard
This article provides an overview of selecting, installing, and configuring motherboards, CPUs, and add-on cards, as required for the CompTIA A+ exam.
CompTIA A+ Exam Domain: Domain 3.4 - Given a scenario, install and configure motherboards, CPUs, and add-on cards.
Motherboard Form Factors
Motherboard size and compatibility depend on the form factor.
ATX (Advanced Technology eXtended) – Standard motherboard size, used in desktops.
ITX (Information Technology eXtended) – Compact motherboard design for small builds.
Motherboard Connector Types
Different connectors provide power, expansion, and storage connectivity.
Peripheral Component Interconnect (PCI) – Older expansion slot for add-on cards.
PCI Express (PCIe) – High-speed interface for modern GPUs, NICs, and other add-ons.
Power Connectors – Includes 24-pin ATX main power and 4/8-pin CPU power.
SATA (Serial ATA) – Connects storage devices like HDDs and SSDs.
eSATA (External SATA) – Provides external connectivity for SATA drives.
Headers – Small pin connectors for front panel buttons, USB ports, and audio.
M.2 – High-speed slot for NVMe SSDs and Wi-Fi adapters.
Motherboard Compatibility
Compatibility is determined by the type of CPU socket and intended usage.
CPU Sockets
AMD – AM4, TR4, sTRX4 (Threadripper), SP3 (EPYC servers).
Intel – LGA 1200, LGA 1700, LGA 2066 (HEDT CPUs), LGA 4189 (Xeon servers).
Server Motherboards – Designed for high-end workloads, multiple CPUs, and ECC RAM.
Multisocket Systems – Used in servers and high-performance computing (HPC).
Desktop Motherboards – Support single CPU, RAM, and expansion cards.
Mobile Motherboards – Found in laptops, ultrabooks, and embedded systems.
BIOS/UEFI Settings
The BIOS/UEFI firmware controls hardware initialization and system configuration.
Boot Options – Set boot priority (HDD, SSD, USB, PXE boot).
USB Permissions – Enable or disable external USB access for security.
Trusted Platform Module (TPM) Security Features – Stores encryption keys for security.
Fan Considerations – Adjust fan curves and cooling settings.
Secure Boot – Ensures only signed OS components load at startup.
Boot Password – Prevents unauthorized access to BIOS settings.
Encryption Technologies
Encryption adds security at the hardware level.
Trusted Platform Module (TPM) – Provides hardware-based encryption for OS security.
Hardware Security Module (HSM) – Dedicated cryptographic processor for enterprise encryption.
CPU Architecture
CPU selection impacts performance, power efficiency, and compatibility.
x64/x86 – x64 supports 64-bit processing; x86 supports 32-bit.
ARM (Advanced RISC Machine) – Power-efficient CPU used in mobile and IoT devices.
Single-Core – One processing unit per CPU.
Multicore – Multiple cores for parallel processing.
Multithreading – Simultaneous thread execution for improved efficiency.
Virtualization Support – Required for running virtual machines (Intel VT-x, AMD-V).
Expansion Cards
Expansion cards enhance system functionality.
Sound Card – Improves audio quality for professional sound applications.
Video Card (GPU) – Handles graphics processing for gaming, video editing, and AI workloads.
Capture Card – Enables video recording and streaming.
NIC (Network Interface Card) – Provides wired or wireless networking capabilities.
Cooling Solutions
Proper cooling prevents overheating and ensures stable performance.
Fans – Air cooling for case airflow and CPU/GPU cooling.
Heat Sink – Passive cooling to dissipate heat from CPU/GPU.
Thermal Paste/Pads – Improves heat transfer between CPU and cooler.

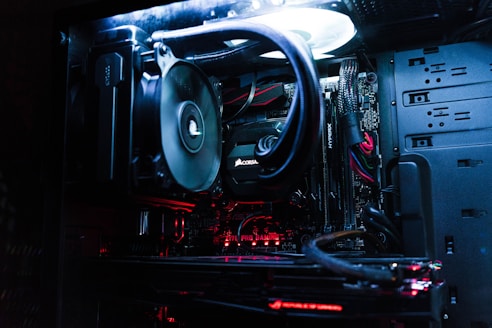

Liquid Cooling – Advanced cooling using water blocks and radiators for high-performance systems.
Installation Steps for a Motherboard and CPU
Check Compatibility – Verify CPU socket type, RAM support, and power requirements.
Prepare the Case – Ensure proper standoff placement for motherboard installation.
Install the CPU – Align the CPU with the socket, secure it, and apply thermal paste.
Attach Cooling Solution – Install the heat sink or liquid cooler and connect power cables.
Install RAM Modules – Use correct slots for dual/quad-channel configurations.
Connect Power Cables – Attach the 24-pin motherboard power and 4/8-pin CPU power.
Attach Storage Devices – Connect SATA, NVMe, or PCIe storage.
Insert Expansion Cards – Install GPU, NIC, or other add-on cards into PCIe slots.
Connect Front Panel and I/O Ports – Attach power button, USB headers, and audio connectors.
Power On and Configure BIOS/UEFI – Set boot options, enable security features, and verify hardware detection.
Final Thoughts
Installing and configuring motherboards, CPUs, and add-on cards requires attention to compatibility, BIOS/UEFI settings, and cooling solutions. The CompTIA A+ exam tests knowledge of these components to ensure IT professionals can effectively build and maintain computer systems.
