3.7 Installing and Replacing Printer Consumables
COMPTIA A+ CORE 1 - DOMAIN 3
Cyber Wizard
This article provides guidance on identifying, installing, and maintaining printer consumables for various printer types, as required for the CompTIA A+ exam.
CompTIA A+ Exam Domain: Domain 3.7 - Given a scenario, install and replace printer consumables.
Laser Printer Consumables and Maintenance
Laser printers use toner-based printing technology that requires periodic replacement and maintenance.
Consumables:
Imaging Drum – Transfers the toner image onto paper; replaced when print quality degrades.
Fuser Assembly – Uses heat and pressure to permanently bond toner to paper; replaced when smearing or fusing issues occur.
Transfer Belt – Moves toner from the imaging drum to the paper; replaced when color inconsistencies appear.
Transfer Roller – Assists in transferring toner onto paper; replaced during maintenance cycles.
Pickup Rollers – Pull paper into the printer; replaced if paper feeding issues arise.
Separation Pads – Prevent multiple sheets from feeding at once; replaced when misfeeds occur.
Duplexing Assembly – Enables double-sided printing; maintained or replaced if duplexing malfunctions.
Imaging Process Stages:
Processing – Print job is received and formatted.
Charging – Imaging drum receives an electrostatic charge.
Exposing – Laser creates an image by neutralizing certain areas of the drum.
Developing – Toner adheres to the drum's charged areas.
Transferring – Toner is moved from the drum to the paper.
Fusing – Heat and pressure permanently bond toner to the paper.
Cleaning – Excess toner is removed from the drum for the next cycle.
Laser Printer Maintenance:
Replace toner when print quality declines or low toner warnings appear.
Apply maintenance kits that include rollers, fuser assembly, and transfer components.
Calibrate printer to align color and optimize print output.
Clean internal components to remove toner buildup and debris.
Inkjet Printer Consumables and Maintenance
Inkjet printers use liquid ink for high-quality printing, requiring periodic maintenance.
Consumables:

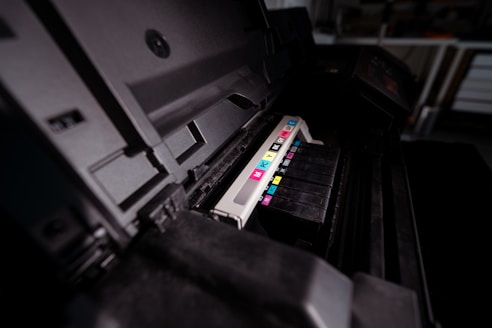

Ink Cartridges – Contain liquid ink; replaced when print fades or runs out.
Print Head – Transfers ink onto paper; replaced when clogged or damaged.
Rollers & Feeder – Move paper through the printer; cleaned and replaced when paper jams occur.
Duplexing Assembly – Enables double-sided printing; checked when duplexing issues arise.
Carriage Belt – Moves the print head assembly; replaced when print alignment issues occur.
Inkjet Printer Maintenance:
Clean print heads regularly to prevent clogging.
Replace ink cartridges when ink runs low or dries out.
Calibrate printer to maintain accurate color and alignment.
Clear paper jams by carefully removing stuck sheets and cleaning rollers.
Thermal Printer Consumables and Maintenance
Thermal printers use heat-sensitive paper for printing and require specialized maintenance.
Consumables:
Feed Assembly – Moves paper through the printer; cleaned or replaced if misfeeds occur.
Heating Element – Generates heat to print on thermal paper; cleaned periodically to ensure print quality.
Special Thermal Paper – Required for printing; replaced when depleted.
Thermal Printer Maintenance:
Replace thermal paper when empty.
Clean heating element with alcohol wipes to maintain print clarity.
Remove debris to prevent buildup that can interfere with printing.
Monitor heat sensitivity of paper to prevent fading and smudging over time.
Impact Printer Consumables and Maintenance
Impact printers use a print head and ribbon to transfer ink onto paper.
Consumables:
Print Head – Strikes an ink ribbon to create text/images; replaced when worn out.
Ribbon – Holds ink for printing; replaced when prints fade.
Tractor Feed – Moves continuous-form paper; replaced if feeding issues occur.
Impact Paper – Special multipart paper used for carbon copies.
Impact Printer Maintenance:
Replace ribbons when print fades.
Replace print heads if characters appear distorted.
Replace tractor feed mechanisms if paper feeding problems arise.
Clean the printer regularly to remove ink buildup and dust.
3D Printer Consumables and Maintenance
3D printers use additive manufacturing techniques to create objects layer by layer.
Consumables:
Filament – PLA, ABS, PETG, or other materials used for printing; replaced when depleted.
Resin – Used in SLA (stereolithography) printers for liquid-based printing.
Print Bed – The surface where the object is printed; cleaned and maintained for adhesion.
3D Printer Maintenance:
Replace filament or resin when running low.
Clean print bed regularly to ensure proper adhesion.
Calibrate printer for accurate prints.
Maintain extruders by cleaning to prevent clogs.
Final Thoughts
Proper maintenance and timely replacement of printer consumables ensure optimal performance and longevity. The CompTIA A+ exam covers different printer types, their components, and required upkeep to ensure IT professionals can install, maintain, and troubleshoot printers efficiently.
